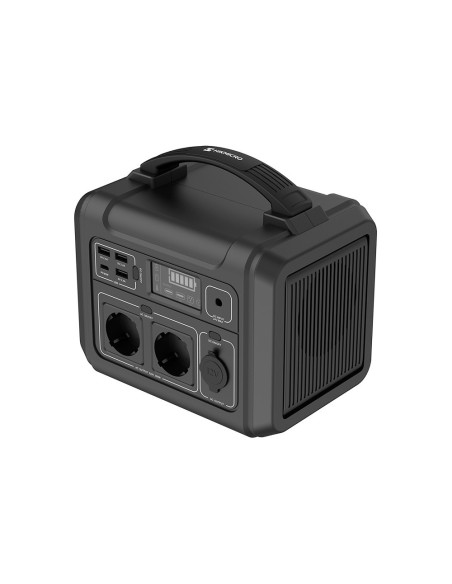

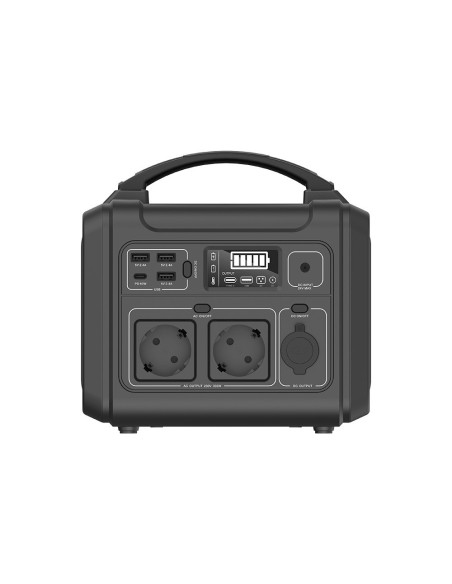

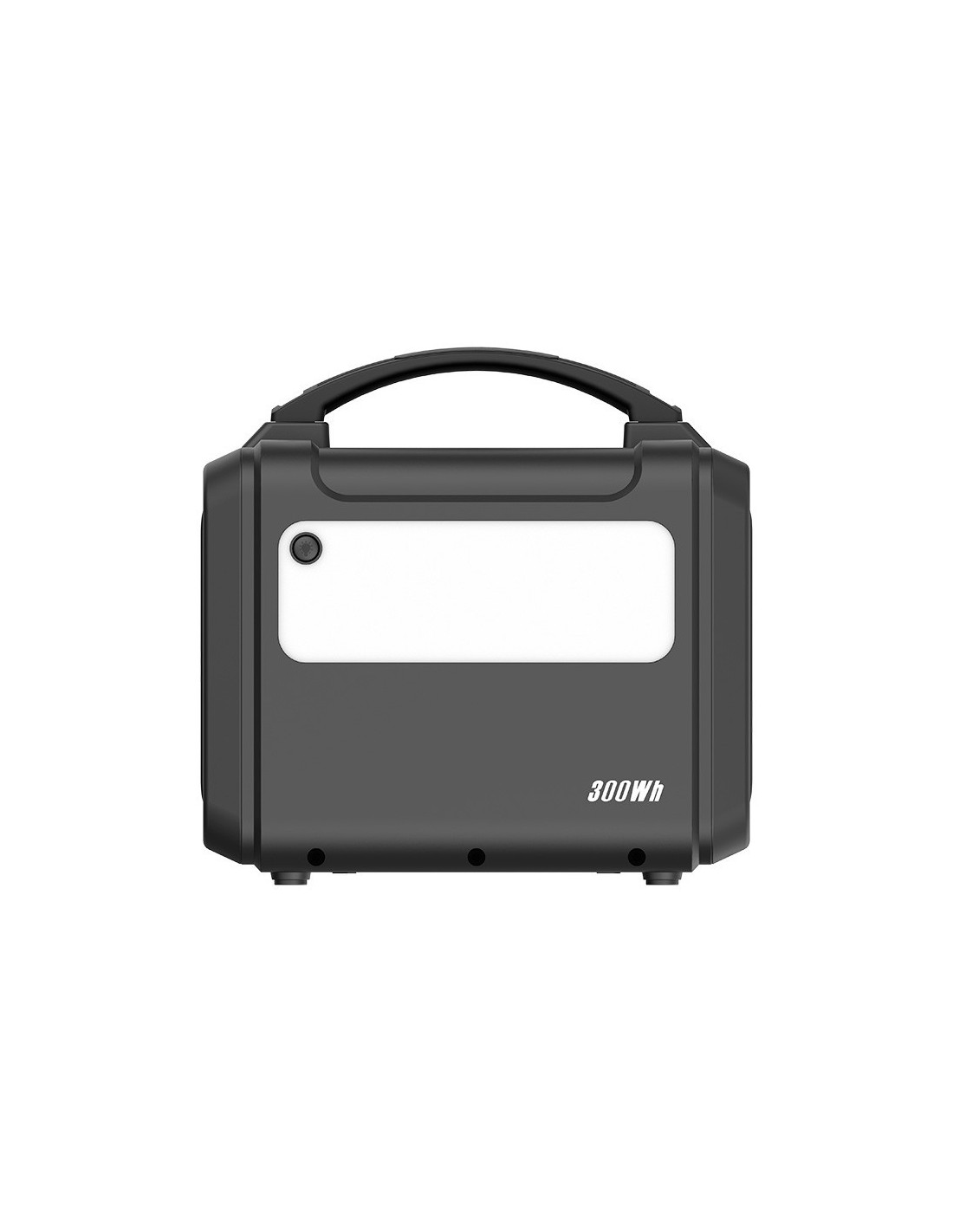

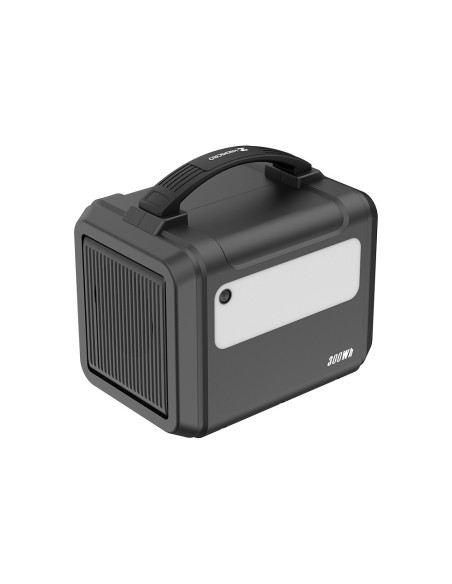

HIKMICRO CHARGING STATION G300

Compact and lightweight charging station for use anywhere. The HIKMICRO G300 allows you to charge several devices at once through four types of ports.

MAIN FEATURES

Charge your devices anywhere

Ideal for outdoor activities

Multiple charging ports

Safe and long-lasting battery

Light, silent

Smart display

Built-in LED light for greater convenience

TECHNICAL SPECIFICATIONS

(Device load) OUTPUT

AC OUTPUT (×2) From 210 V to 245 VAC (50 Hz) Individual: 300 W, Total: 300 W, Surge: 500 W

USB-A OUTPUT (×3) Individual: 5V, 2.4A (12W Max.), Total: 30W Max.

USB-C OUTPUT (×1) 5V⎓3A/9V⎓3A/15V⎓3A/20V⎓3A (60 W Max.) DP Protocol Compliance.

CAR OUTPUT (×1) From 9 to 12.6 V⎓10 A (120 W Max.)

MAX. OUTPUT 330 W (Does not accept large appliances such as microwaves, hair dryers and hot plates)

OUTPUT (With the AC port in operation)

CAR OUTPUT (×1) Not supported

AC OUTPUT (×2) /

USB-C OUTPUT (×1) 15W Max.

USB-A OUTPUT (×3) Individual: 5V⎓2.4A (12W Max.), Total: 15W Max.

OUTPUT (while recharging at the station)

CAR OUTPUT (×1) Not supported

AC OUTPUT (×2) Not supported

USB-C OUTPUT (×1) Not supported

USB-A OUTPUT (×3) Individual: 5V⎓2.4A (12W Max.) Total: 30W Max.

INPUT (Station charging methods)

Charging Methods:

– DC input port: solar panel, car charging port

– AC adapter

– USB-C port: USB-C cable

DC 5521 Solar panel and car charging port: 5 to 24 V⎓2 A (48 W Max.), AC adapter: 18 V⎓2 A (36 W Max.)

USB-C 5 V⎓3 A/9 V⎓3 A/15 V⎓3 A/20 V⎓3 A (60 W Max.) DP Protocol Compliance.

Solar panel load: From 12 to 24 V⎓2 A (48 W Max.)

Full charge time:

– With USB-C cable: 5 to 6 hours

– Solar panel: 7 to 8 hours

– Car charging port (12 V/24 V): 10 to 12 hours

– AC adapter: 7 to 10 hours

BATTERY

NCM Lithium-ion chemical battery

Life cycle: 1,000 cycles at 80%+ capacity

Capacity: Wh (10.95 V)

Management systems: Protection against overvoltage, Protection against overload, Protection against overtemperature, Protection against short circuits, Protection against low temperature, Protection against low voltage, Protection against overvoltage.

GENERAL

Dimensions: 21.7 × 15.5 × 21.2 cm

Weight: 3.61 kg

Charging temperature: 0°C to 40°C

Discharge temperature: -10°C to 40°C

Accessories included: AC Adapter ×1, Car Charging Cable ×1, MC4 Cable for Solar Panel Charger ×1, Quick Use Guide ×1
