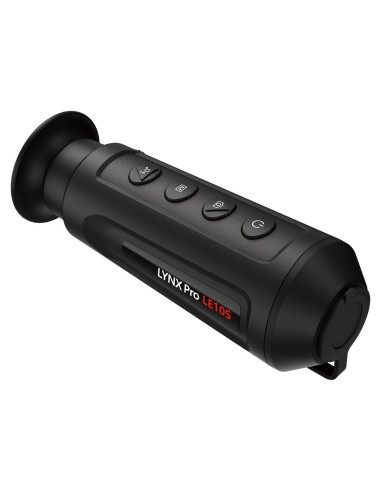

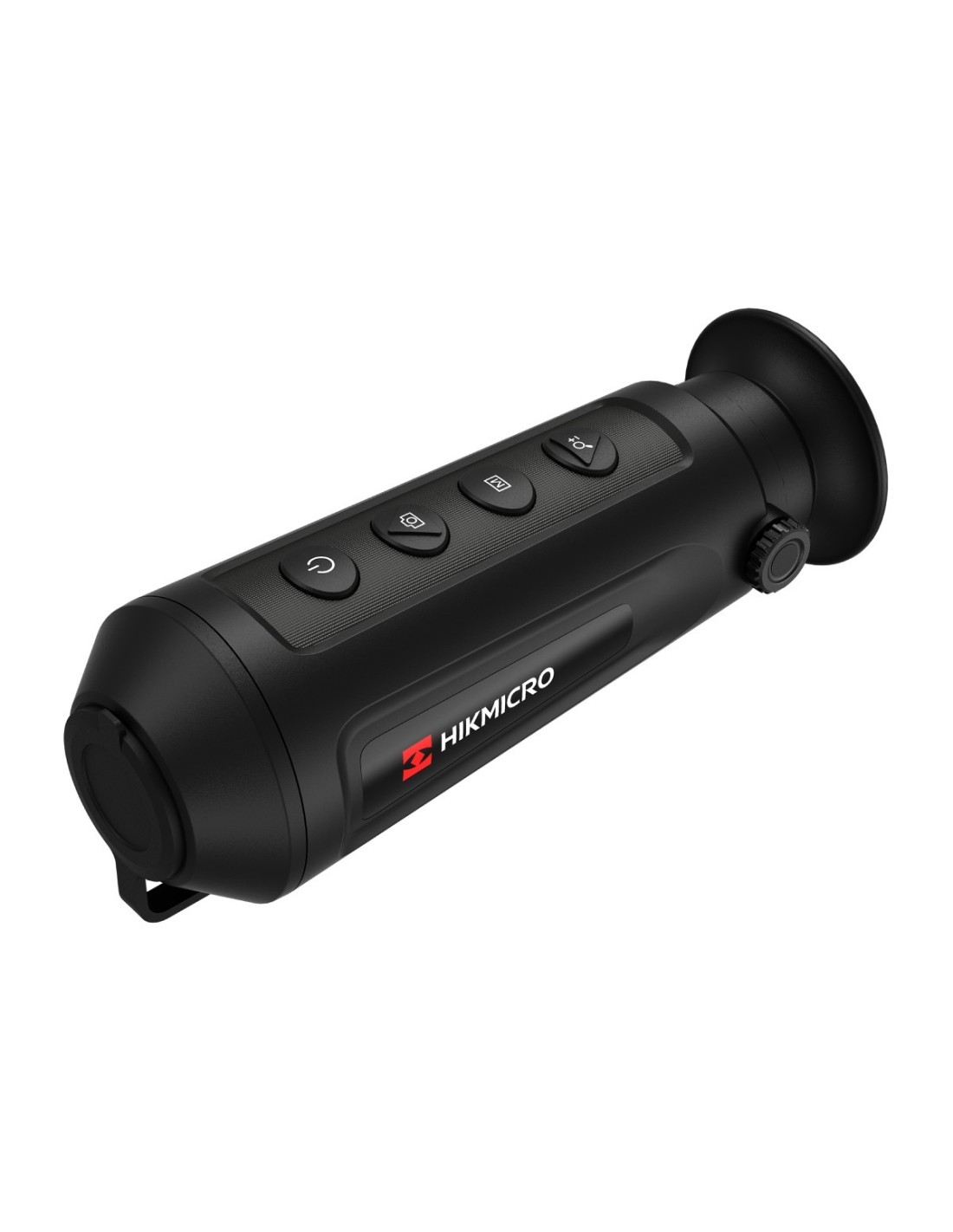

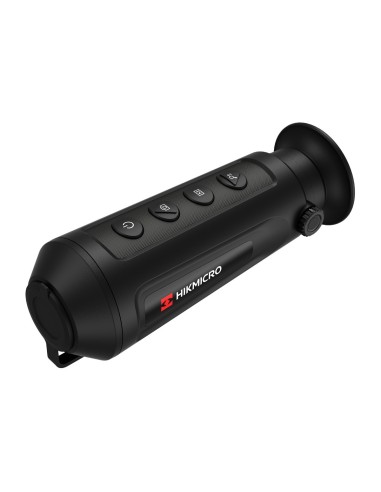

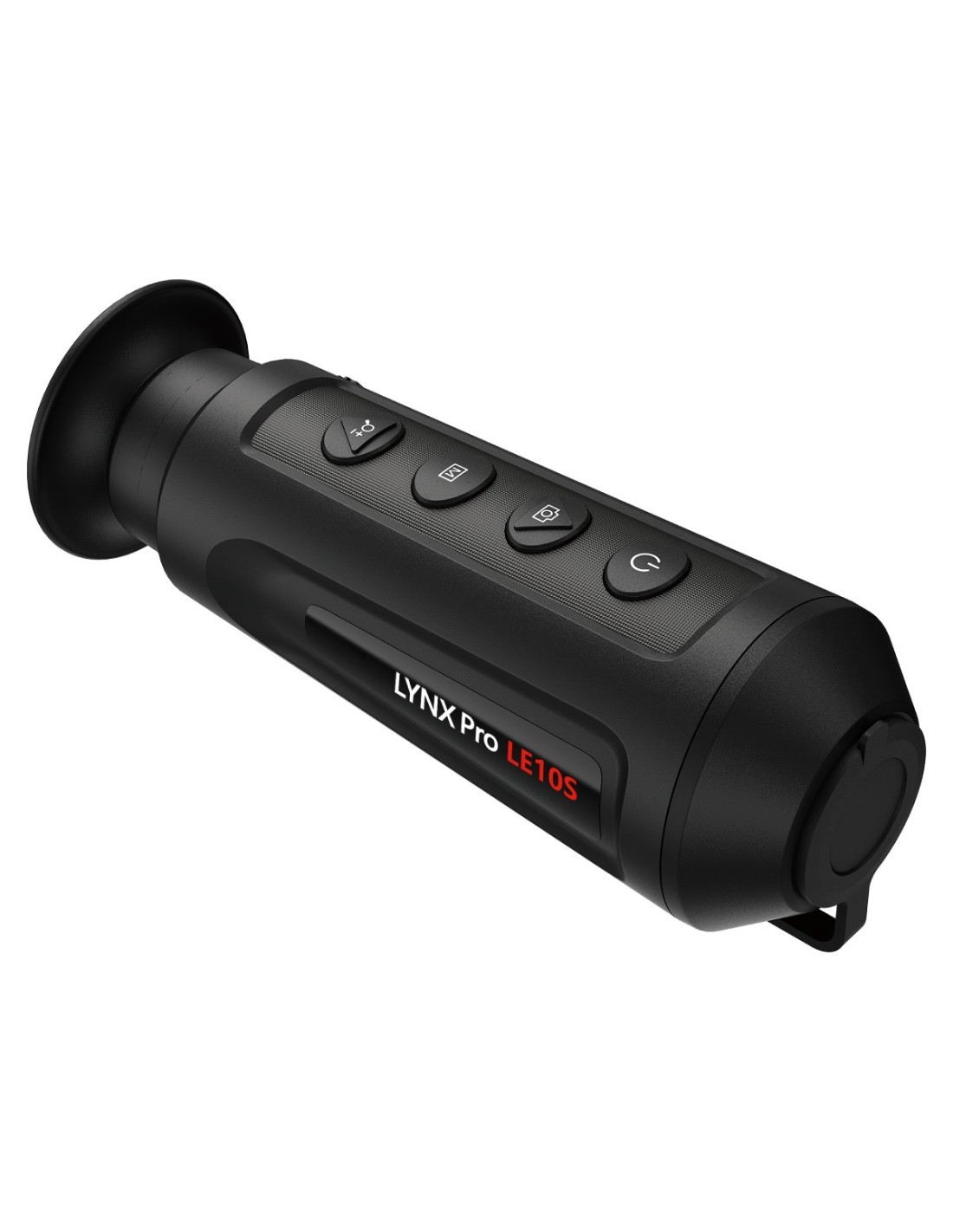

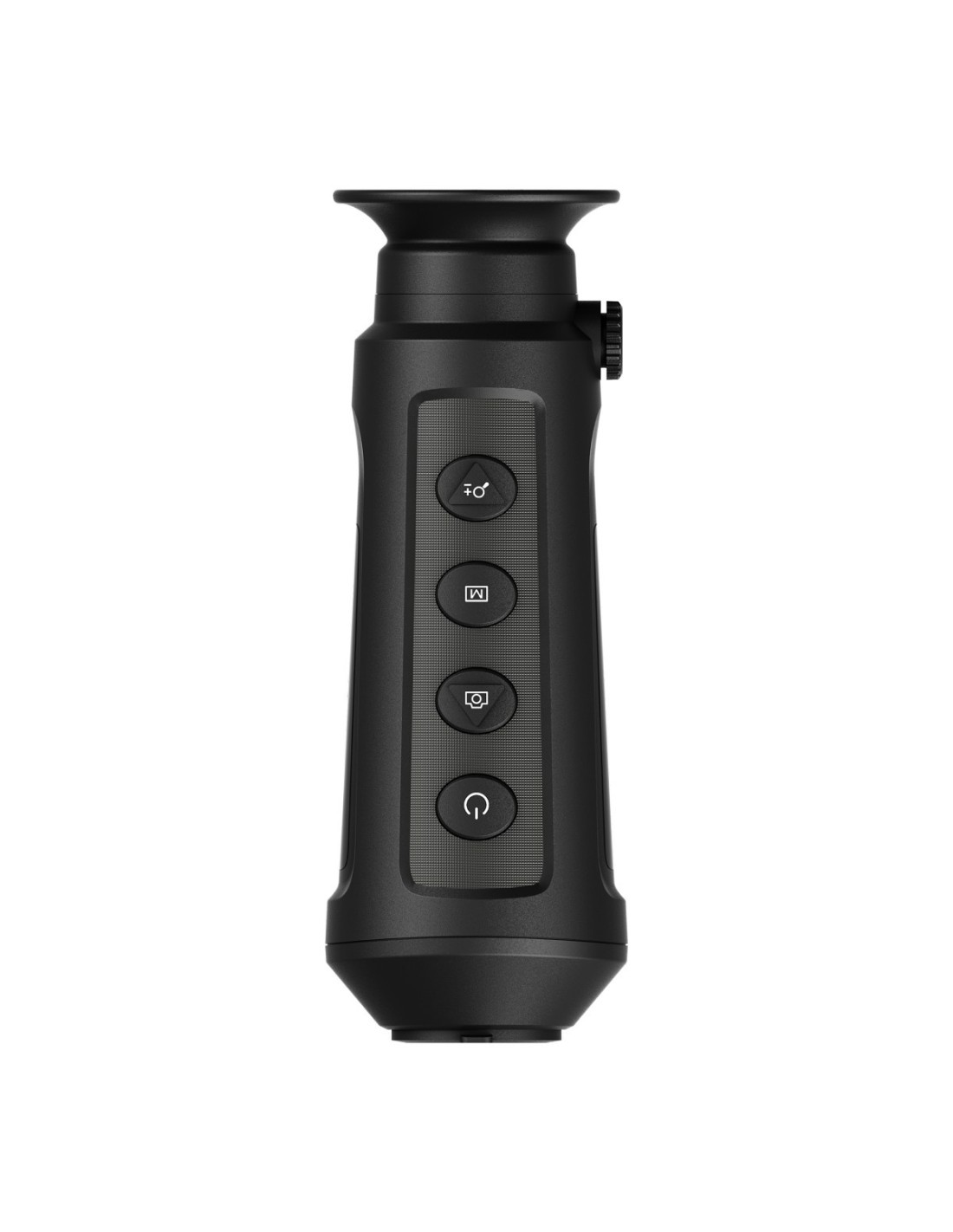

HIKMICRO THERMAL MONOCULAR LYNX PRO LE10 S (UN)

HIKMICRO LYNX Pro LE10S thermal monocular is equipped with a 256 × 192 infrared detector and 800 × 600 OLED display. It supports observation, distance measurement and hotspot functions. High-sensitivity thermal detector provides clear vision even in total darkness. The Hikmicro Lynx Pro LE10S thermal monocular is mainly suitable for scenarios such as hunting, hiking, search and rescue.

Main features

256 × 192 resolution, 12 μm, high sensitivity detector

NETD less than 35 mK (@25°C, F# = 1.0)

Adaptive AGC, DDE, DNR 3D

0.32-inch OLED display with 800 × 600 resolution

Built-in rechargeable lithium battery

Up to 8 hours of continuous operation

Supports hotspot

Specifications

Thermal module

Image Sensor: VOx Uncooled Focal Plane Arrays

Max resolution: 256 × 192

Frame rate: 50Hz

Pixel interval: 12μm

Response waveband: 8 μm to 14 μm

NETD: Less than 35 mK (@25°C, F# = 1.0)

Lens (focal length): 9.7mm, F1.0

Focus mode: Free focus

Detection range: 500m

Min. focus distance: 4 m

Magnification: 1.5× to 12.0× (8×)

Field of view (H × V), Degrees / m @100 m: 18.0° × 13.6° / 31.7 m × 23.8 m

Image display

Screen: 800 × 600, 0.32 inches, OLED

Palettes: Warm Black, Warm White, Warm Red, Fusion

FFC (flat field correction). Mode: Auto, Manual, External Correction

Exit pupil: 20 mm

Eye relief: 6mm

Diopters (Range): -5D to +4D

Brightness adjustment: Yes

Tone setting: Cold, Warm

Contrast adjustment: Yes

System

Record Video: Yes

Instant Capture: Yes

Audio Recording: Yes

Standby mode: Yes

Storage: Integrated memory module (8 GB)

PIP: Yes

Hotspot: Yes

Hot Track: Yes

Distance measurement: Yes

Feeding

Battery type: Rechargeable lithium battery

Battery run time: 8 hours of continuous operation with hotspot function disabled (@25°C). 6 hours of continuous operation with access point function activated (@25°C)

Type-C Power: DC 5V/2A

Support external power supply

General

Protection level: IP67

Dimensions: 158.3mm × 61mm × 57mm

Operating temperature: – 20°C to 55°C

Weight: 260g

Box contents

Lynx LE10S

Dust cloth

USB Cable

Protective bag

wrist lanyard

User manual
